What are the disadvantages of wire cutting gears?
Wire cutting is a commonly used gear processing method. It transfers the shape cut by the electrode to the workpiece through electric spark discharge, thereby realizing the processing of the gear. However, wire cutting also has some disadvantages, which will be described in detail below.
1. Low processing accuracy
First, the machining accuracy of wire cutting gears is relatively low. Since wire cutting gears are processed by electric spark discharge, a certain discharge gap will be generated between the electrode and the workpiece, which leads to a decrease in machining accuracy. Especially for gears with higher requirements, such as precision gears or high-precision gears, wire cutting often cannot meet their machining requirements.
2. Low processing efficiency
Secondly, the processing efficiency of wire cutting gears is low. Since wire cutting gears are processed by electric spark discharge, each discharge can only cut a small section, so multiple discharges are required to complete the processing of the entire gear. This leads to a long processing time and low processing efficiency. Especially for the processing of large gears, wire cutting is time-consuming and labor-intensive.
3. Poor surface quality.
Secondly, the surface quality of wire-cut gears is poor. Since wire-cut gears are processed by electric spark discharge, high temperature and high pressure will be generated during discharge, causing melting and oxidation on the workpiece surface. This results in poor surface quality of the processed gears, with defects such as burrs, oxide layers and melting marks. These defects not only affect the appearance quality of the gears, but may also affect the service life and transmission efficiency of the gears.
4. Large waste of materials
Wire cutting is to obtain the desired shape by cutting metal workpieces, but the byproducts produced in the process will waste a lot of raw materials. Since wire cutting requires sufficient margin to ensure sufficient cutting depth, a large amount of material is wasted. In addition, since the distance between the molybdenum wire and the workpiece cannot be adjusted during the processing, electric spark overflow will occur, resulting in a large number of particles and cracks on the workpiece surface, which will affect the mechanical properties of the material.
5. Limited scope of application
Finally, the application scope of wire cutting gears is limited. Since the processing accuracy and surface quality of wire cutting gears are relatively low, it is suitable for some gear processing with low requirements, such as some low-precision gears or non-transmission gears. For some gear processing with higher requirements, such as high-precision gears, large gears or high-speed gears, wire cutting often cannot meet their processing requirements.
In summary, although wire cutting gear machining is a commonly used gear machining method, it has some disadvantages in machining accuracy, machining efficiency, surface quality, machining cost and applicable scope. Therefore, in practical applications, it is necessary to select a suitable machining method according to specific machining requirements and conditions.

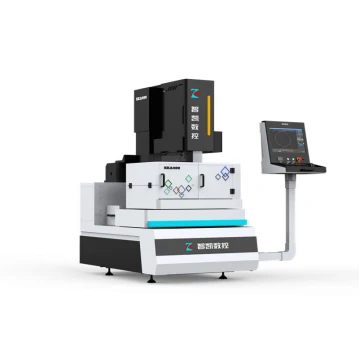

Zhikai ZKH550 wire cutting machine, five-axis servo drive, supports upper and lower special-shaped cutting, temporary axis shifting and one-button depth setting, and cutting of complex curved surfaces. It can achieve extremely high processing accuracy and surface roughness requirements, with excellent performance and easy operation! For more detailed information, please contact Zhikai CNC: 180-1313-1588!
